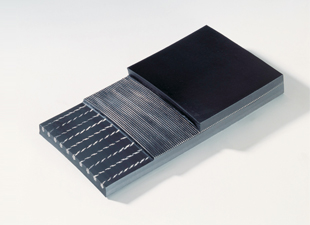

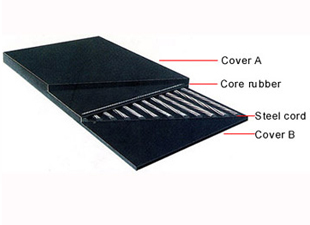

Steel Cord Conveyor Belt

We are looked upon as one of the prime Steel-Cord Reinforced Conveyor Belt Exporters in India. Our Fire-Resistant Steel Cord Conveyor Belts are sourced from. the company that has provided a 2000 mm Steel Cord Conveyor Belting carrier overburden on a high speed conveyor at a Neyveli Lignite mine. The availability of the Steel Cord Conveyor Belt in varied widths and strengths of ST – 7000 has made the cords ideal for various applications in Lignite Mines, Port, Steel Plant etc. Fire Resistant Steel Cord Conveyor Belts are also available in varied dimensions as per the specifications provided.

Technical Specification of Steel Cord Conveyor Belt

Type	ST 630	ST 800	ST 1000	ST 1250	ST 1600	ST 2000	ST 2500	ST 3150	ST 3500	ST 4000	ST 4500	ST 5000	ST 5400
Longitudinal Tensile Strength N/mm	630	800	1000	1200	1600	2000	2500	3150	1500	4000	4500	5000	5400
Steel Cord Max, Nominal Diameter (mm)	3.0	3.5	4.0	4.5	5.0	6.0	7.2	8.1	8.6	8.9	9.7	10.9	11.3
Distance of Steel Cord (mm)	10 ± 1.5	10 ± 1.5	12 ± 1.5	12 ± 1.5	12 ± 1.5	12 ± 1.5	15 ± 1.5	15 ± 1.5	15 ± 1.5	15 ± 1.5	16 ± 1.5	17 ± 1.5	17 ± 1.5
Thickness of Top cover (mm)	5	5	8	6	6	8	8	8	8	8	8	8.5	9
Thickness of Bottom Cover (mm)	5	5	4	6	6	6	6	6	8	8	8	8.5	9

Width (mm)	ST 630	ST 800	ST 1000	ST 1250	ST 1600	ST 2000	ST 2500	ST 3150	ST 3500	ST 4000	ST 4500	ST 5000	ST 5400
800	75	75	63	63	63	63	50	50	50	-	-	-	-
1000	95	95	79	79	79	79	64	64	64	64	59	55	55
1200	113	113	94	94	94	94	76	76	77	77	71	66	66
1400	133	133	111	111	111	111	89	89	98	98	84	78	78
1600	151	151	126	126	126	126	101	101	104	104	96	90	90
1800	-	171	143	143	143	143	114	114	117	117	109	102	102
200	-	-	159	159	159	159	128	128	130	130	121	113	113
